Precisely Test & Adjust Your Model T Coils with the Electronically Cranked Coil Tester
Anytime, Anywhere by Anyone
About the ECCT
The New Standard for Adjusting Model T Coils

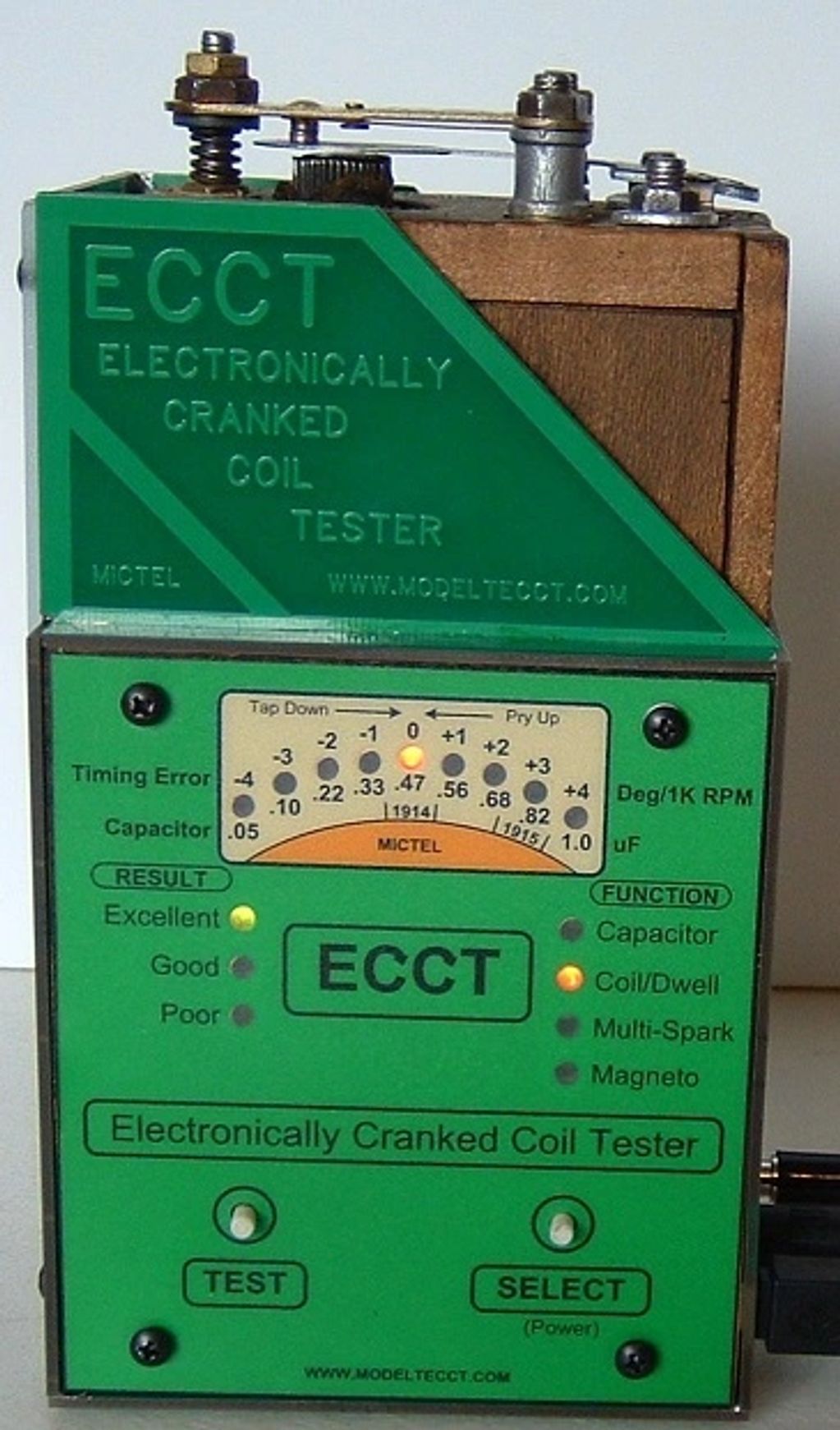

The Electronically Cranked Coil Tester (ECCT) is a precision electronic instrument designed to test and adjust 1913-1927 Ford and K-W coils with ease and precision unachievable with all previous tools and methods.
Engine performance depends on ignition timing Not coil current so the ECCT accurately measures coil dwell time to fire the first spark responsible for engine combustion. All 4 coils can be precisely adjusted to fire a single hot spark with equal and consistent firing time using a fast pulse that emulates Magneto output at normal engine speeds. This minimizes coil to coil (cylinder to cylinder) timing variation to achieve optimal engine performance.
The ECCT can also test the internal capacitor (condenser) for proper value and leakage to ensure maximum point life and optimum coil performance. The available Magneto Test Option enables the ECCT to test magneto output is sufficient to properly operate coils.
ECCT test results can be displayed numerically and graphically on a PC or laptop with optional Advanced Features Software that makes coil adjusting much easier. The software also allows you to change the number of sparks fired from 2 to 250 and change the coil firing rate from 500 to 5000 RPM to fine tune coils for the ultimate in performance. Weighing less than a pound, the ECCT is easy to store and portable to take on tour.
The ECCT has earned the distinction as the new standard for testing and adjusting Model T coils by hundreds of experienced Model T enthusiasts impressed with resulting engine performance achieved with ECCT adjusted coils.
ECCT: $399.95 ORDER
Expandable ECCT Test Capability
Magneto Test Option
The available Magneto Test Option enables the ECCT to test Magneto output is sufficient to properly operate coils. The ECCT Magneto test capability can be added at anytime as your test needs change, however, discounts may be available when the Magneto Test Option is purchased with ECCT.
Magneto Test Option for the ECCT: $149.95 ORDER
ECCT with Magneto Test Option: $474.95 (Save $75) ORDER
Advanced Features Software
PC Software Simplifies Coil Adjustment
PC Software Simplifies Coil Adjustment
PC Software Simplifies Coil Adjustment
The ECCT is a stand alone tool that does not require a computer. However, test results can be displayed numerically and graphically on a PC or Laptop with the optional Advanced Features Software which makes coil adjusting much easier. The software also permits the user to change the coil firing rate from 375 to 5000 RPM and number of sparks fired from 2 to 250 to fine tune coils for the ultimate engine performance. A written summary of each coil test result is provided along with suggestions on how to improve coil performance which is very helpful to beginners just learning how to adjust coil points. Be sure to visit the user review page.
PC Software Option for the ECCT: $149.95 ORDER
ECCT with PC Software Option: $474.95 (Save $75)
PC Software and Magneto Test Options
PC Software Simplifies Coil Adjustment
PC Software Simplifies Coil Adjustment
ECCTs equipped with both Magneto Test Option and PC Software option can also provide a real time tachometer display of engine RPM while displaying the numerical Magneto output RMS voltage under load and no load conditions to assist with troubleshooting magneto problems.
The ECCT PC Software and Magneto test Options can be added at anytime as your test needs change, however, discounts may be available when purchased with the ECCT.
ECCT Discount Package Includes PC Software and Magneto Test
ECCT Discount Package - ECCT with PC Software and Magneto Test Options
ECCT Discount Package - ECCT with PC Software and Magneto Test Options
ECCT Discount Package - ECCT with PC Software and Magneto Test Options
This special discount package includes the ECCT with PC Software and Magneto Test options. The PC software displays ECCT test results numerically and graphically on a PC or Laptop which makes coil adjusting much easier. The software also permits the user to change the coil firing rate from 375 to 5000 RPM and number of sparks fired from 2 to 250 to fine tune coils for the ultimate engine performance. A written summary of each coil test result is provided along with suggestions on how to improve coil performance which is very helpful to beginners just learning how to adjust coil points.
Magneto Testing with PC Software Features
ECCT Discount Package - ECCT with PC Software and Magneto Test Options
ECCT Discount Package - ECCT with PC Software and Magneto Test Options
The included Magneto Test Option and PC Software option provides a real time tachometer display of engine RPM while displaying the numerical Magneto output RMS voltage under load and no load test conditions to display the magneto internal resistance to assist with troubleshooting magneto problems.
Our Most Popular Package:
ECCT with PC Software and Magneto Test Options: Special Package Price: $549.95 (Save $150) ORDER
ECCT Accessories
3 in 1 Adjusting Tool
3 in 1 Adjusting Tool
3 in 1 Adjusting Tool
Coil point adjusting just got a lot easier with the new 3 in 1 coil adjusting tool. Lets you adjust vibrator spring tension AND cushion spring tension using the same convenient tool. No more juggling or searching for multiple tools when adjusting coils. The fast and easy way to adjust Model T coil points. $29.95 ORDER
12V Car Power Adapter
3 in 1 Adjusting Tool
3 in 1 Adjusting Tool
Car cigarette lighter power cable for the ECCT allow you to power the ECCT on the road from any standard 12V car power jack.
$19.95 ORDER
SPECIAL OFFER
The Ideal Timer for ECCT Adjusted Coils
The I-Timer is a direct, drop in, replacement for the stock Model T mechanical timer that provides precise coil activation, immune to timing cover misalignment, never wears out and never needs maintenance. Simply replace your mechanical timer with the I-Timer and enjoy smooth, optimal engine performance with your ECCT adjusted Model T coils.
Learn more about the I-Timer, click Here.
ECCT and I-Timer Special Package: SAVE $175, ORDER HERE,
